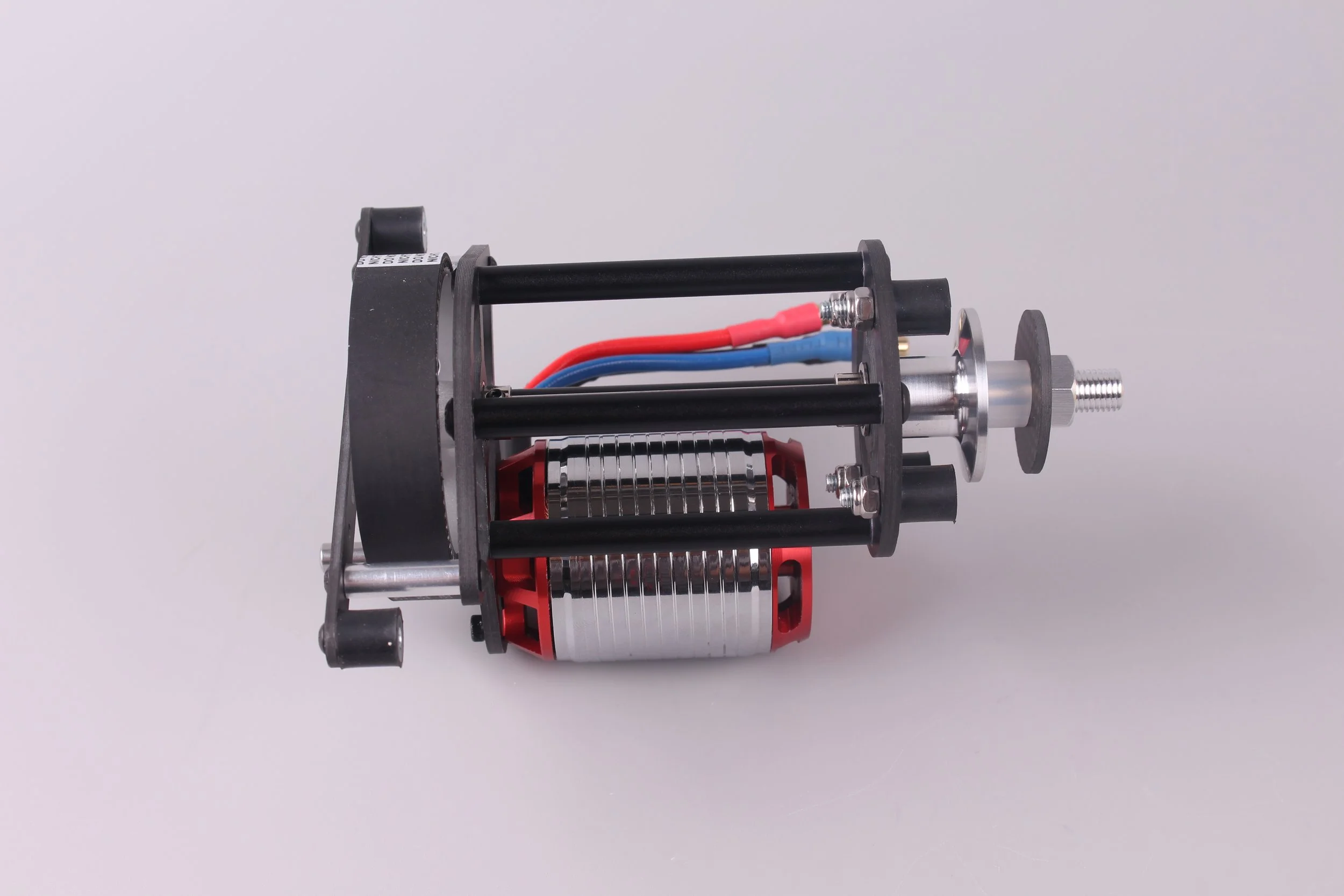

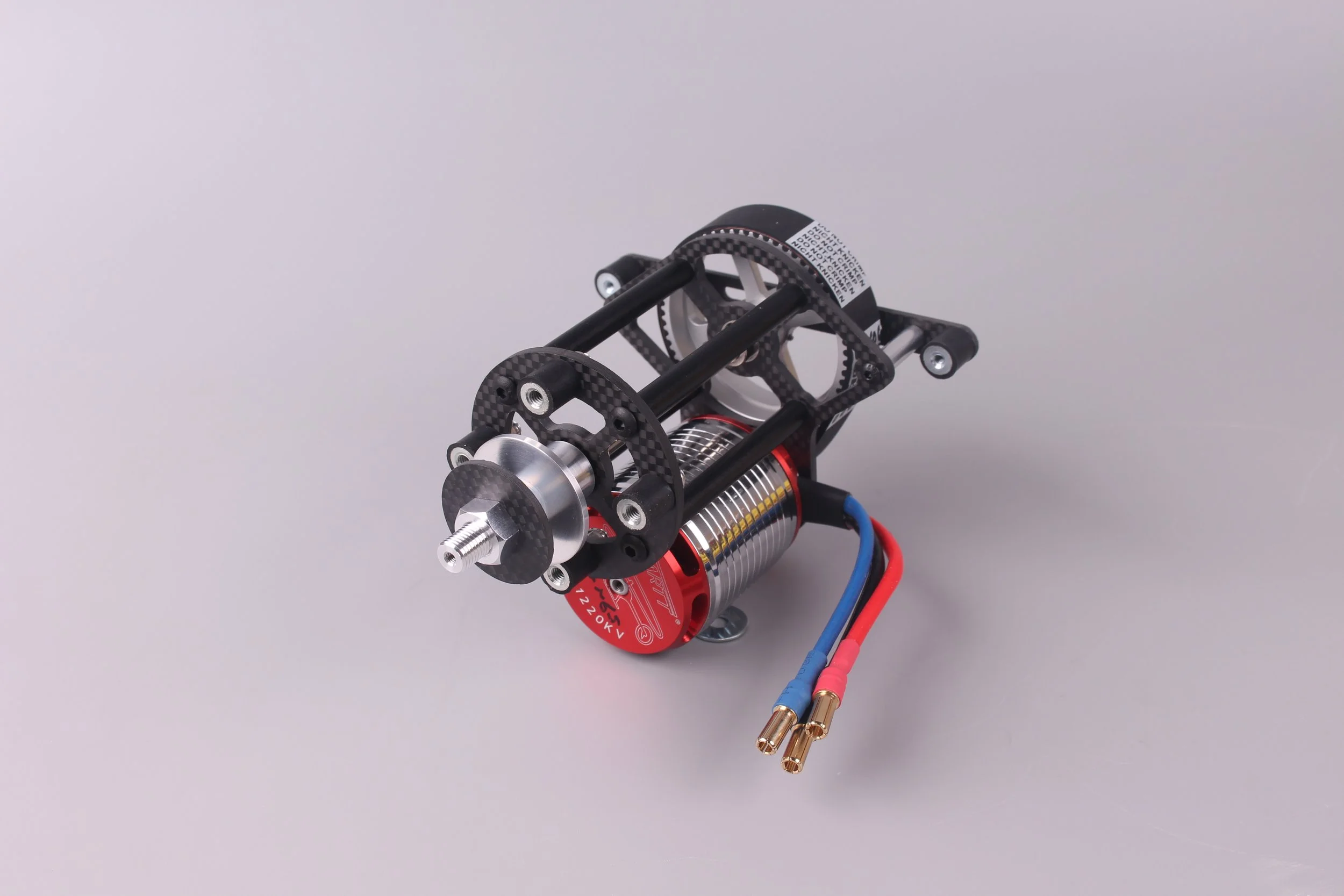

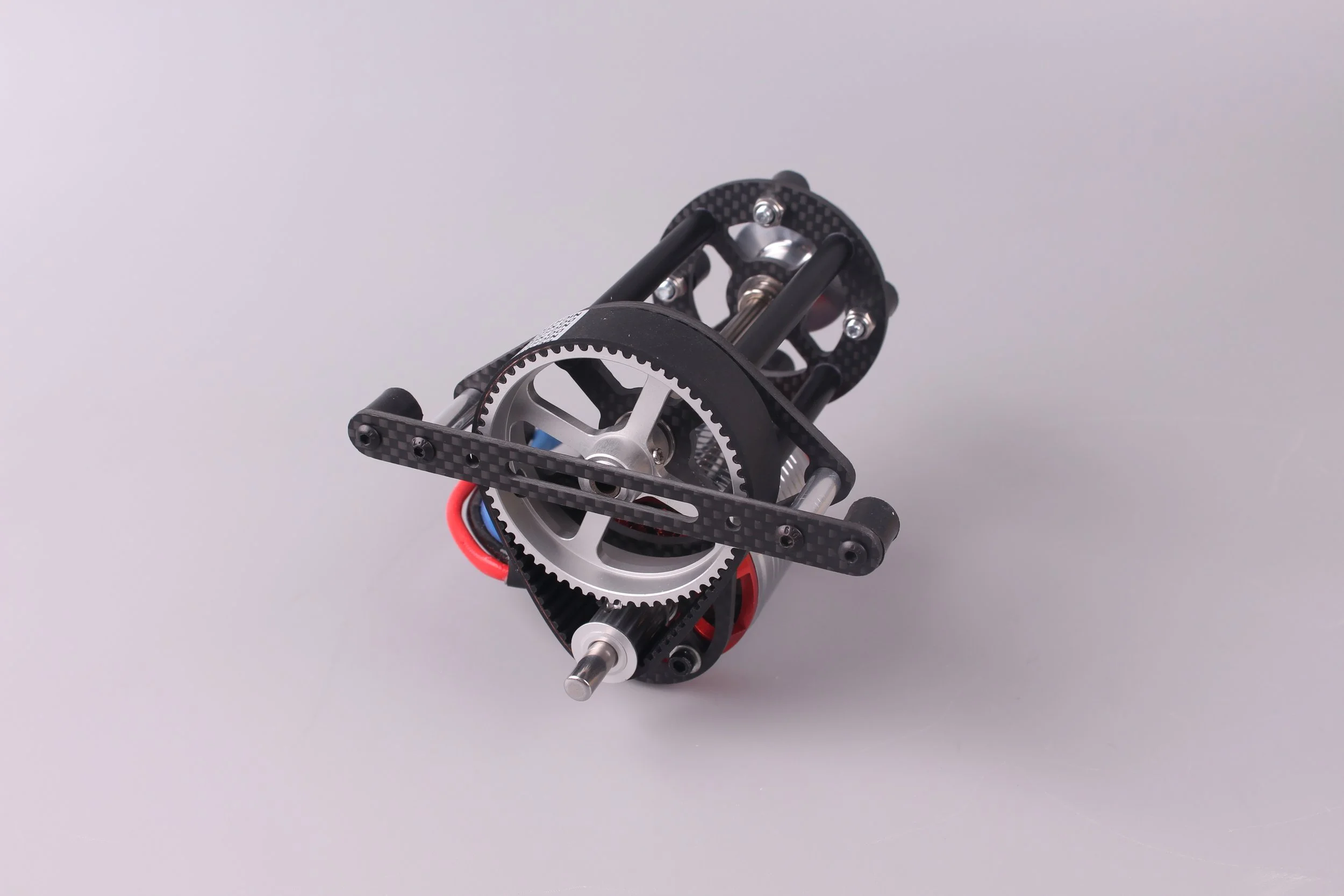

Panther SD 70 is a single belt drive unit for 70 class F3A planes.
Notice : This unit doesn't include the motor. The pilots select the motors according to type and weight of their airplanes. We recommend Scorpion HK3226-1530 Kv or equivalent motors for this unit.
Warning : The Panther is a device that operates at high rotational speed, and always make sure there ate no people around before operating it.
If you feel any unusual vibration and nose during use, please stop operating immediately and determine the cause.
Specification
Weight without motor : 146 g
Size : 141.5 X 110 X 90 mm

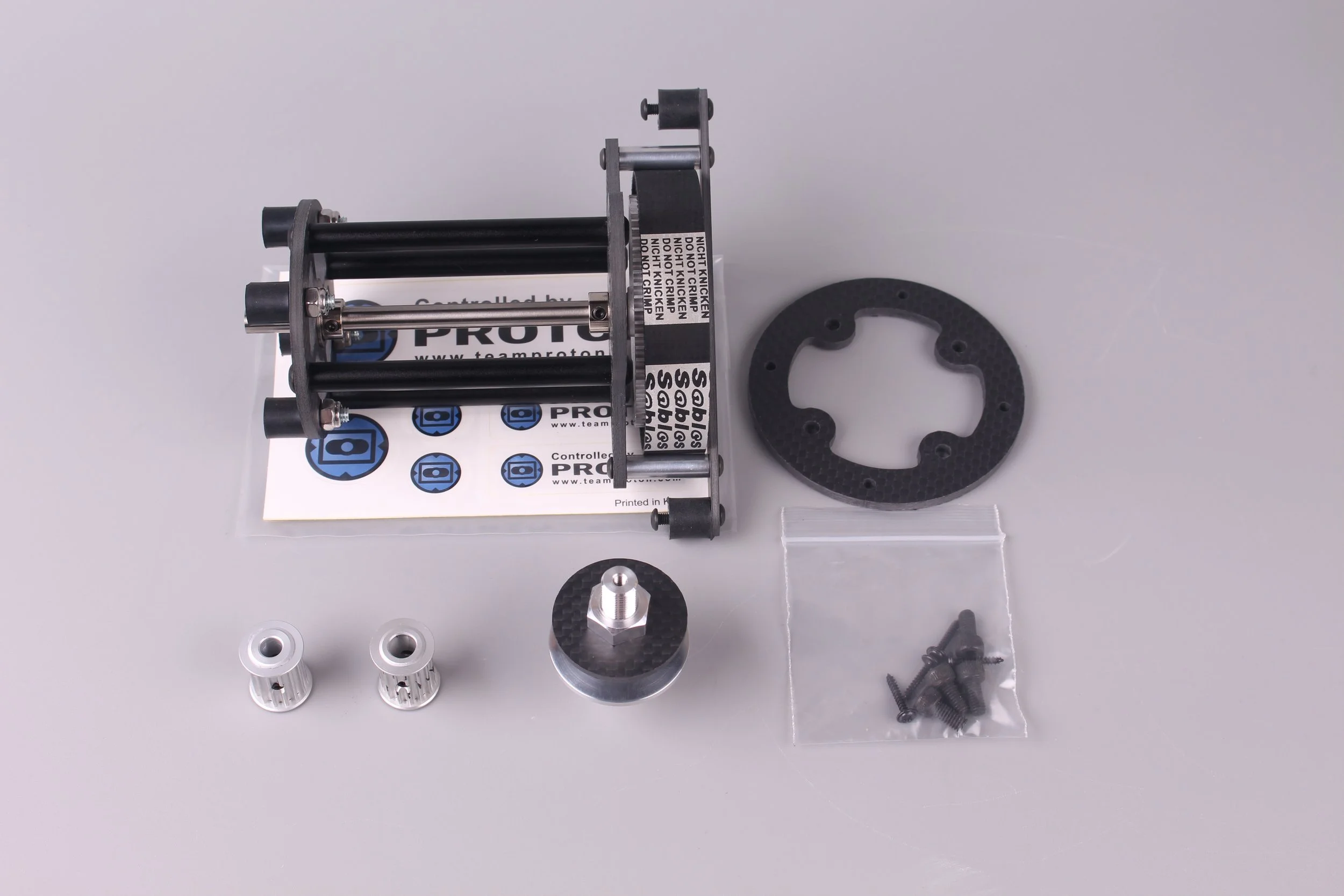

Contents
Panther 70 ——————————— 1 pcs
Motor pulley ID 5mm —————— 1 pcs
Motor pulley ID 6mm —————— 1 pcs
70 mm mount set ———————— 1 set
Repair parts of Panther 70
Belt, HTD204-3M
Collet set
