Introducing
PathFinder
Panther Collection.
-
A lightweight single-belt drive unit for 70-class F3A models, CNC-machined for smooth performance and durability. Compatible with Scorpion HK3226-1530 Kv or equivalent motors.
-
Weight (without motor): 146 g
Size: 141.5 × 110 × 90 mm
-
A CNC-machined contra-drive system for 2M F3A aircraft, featuring precision gears, shafts, and pulleys for maximum efficiency and durability. Designed for Egodrift TENGU 4025EC 650 Kv or equivalent motors.
-
Weight: 182 g (without motor and mount)
Outer Size: 84 × 76 × 101 mm
External Shaft: Ø 6 mm × 40 mm length
Reduction Ratio: 4.77
-
A CNC-machined single-drive belt system for 2M F3A aircraft, offering high efficiency and durability in a simplified SD (single drive) configuration. Compatible with Egodrift TENGU 4025EC 650 Kv or similar motors.
-
Weight : 182 g without motor and mount
Outer size : 84 X 76 X 101 mm
External shaft diameter and length : ø 6mm, 40mm
Reduction rate : 4.77
Servo Collection.
-

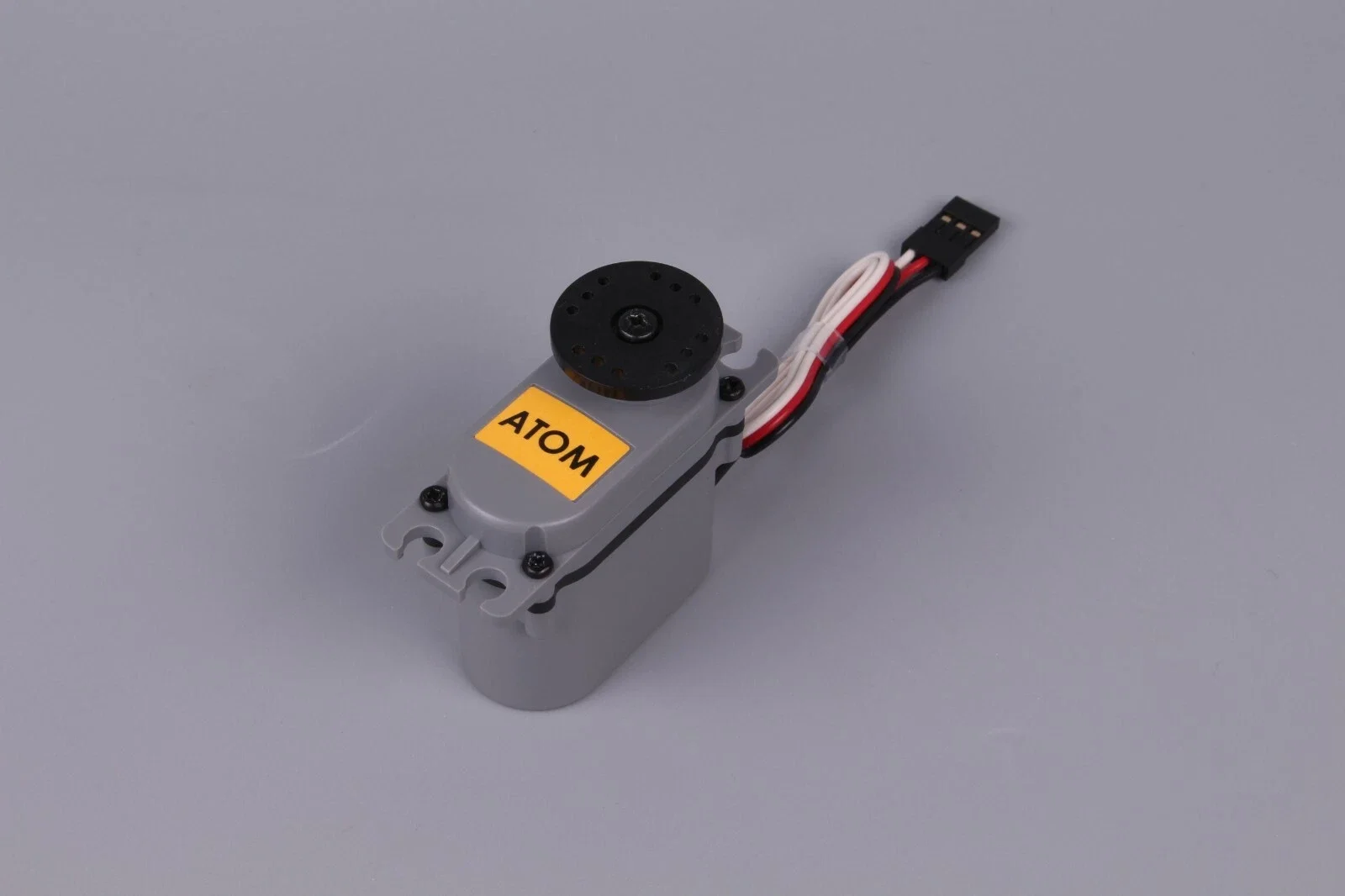

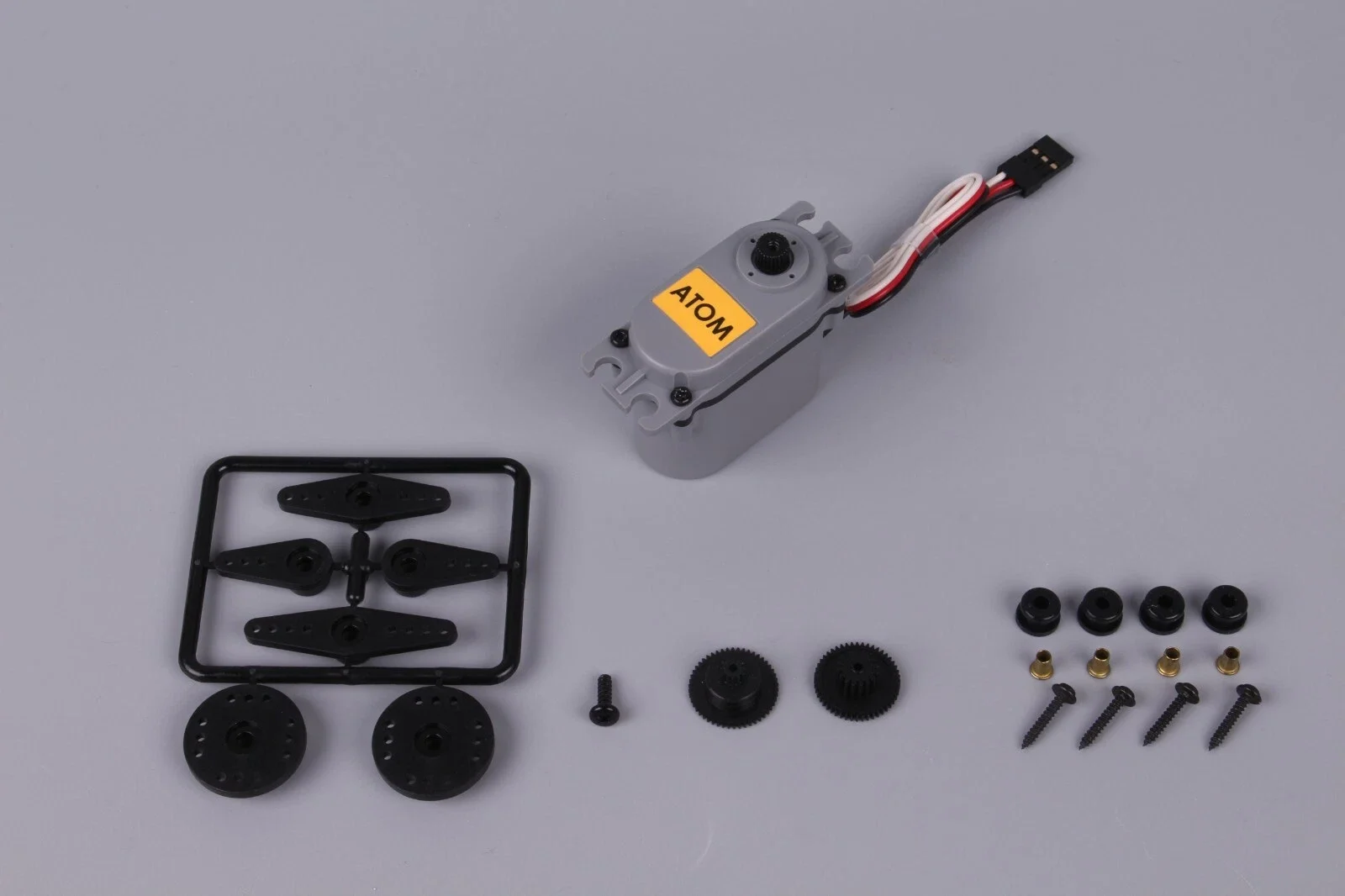

The Atom Digital Standard Servo features a durable 20% fiberglass-reinforced frame (FRF) for precise, smooth performance. Designed for 4.8V operation or 6–12V with the included 5V regulator, it delivers 43 oz-in torque, 0.21 sec speed, and reliable accuracy for a wide range of RC applications.
-
Modulation: Digital
Input Voltage:
4.8 V direct use
6–12 V when used with included 5V regulator
Torque: 43.00 oz-in (3.10 kg-cm)
Speed: 0.21 sec / 60°
Weight: 36 g
Motor: Mabuchi RF020TH
Connector Type: JR

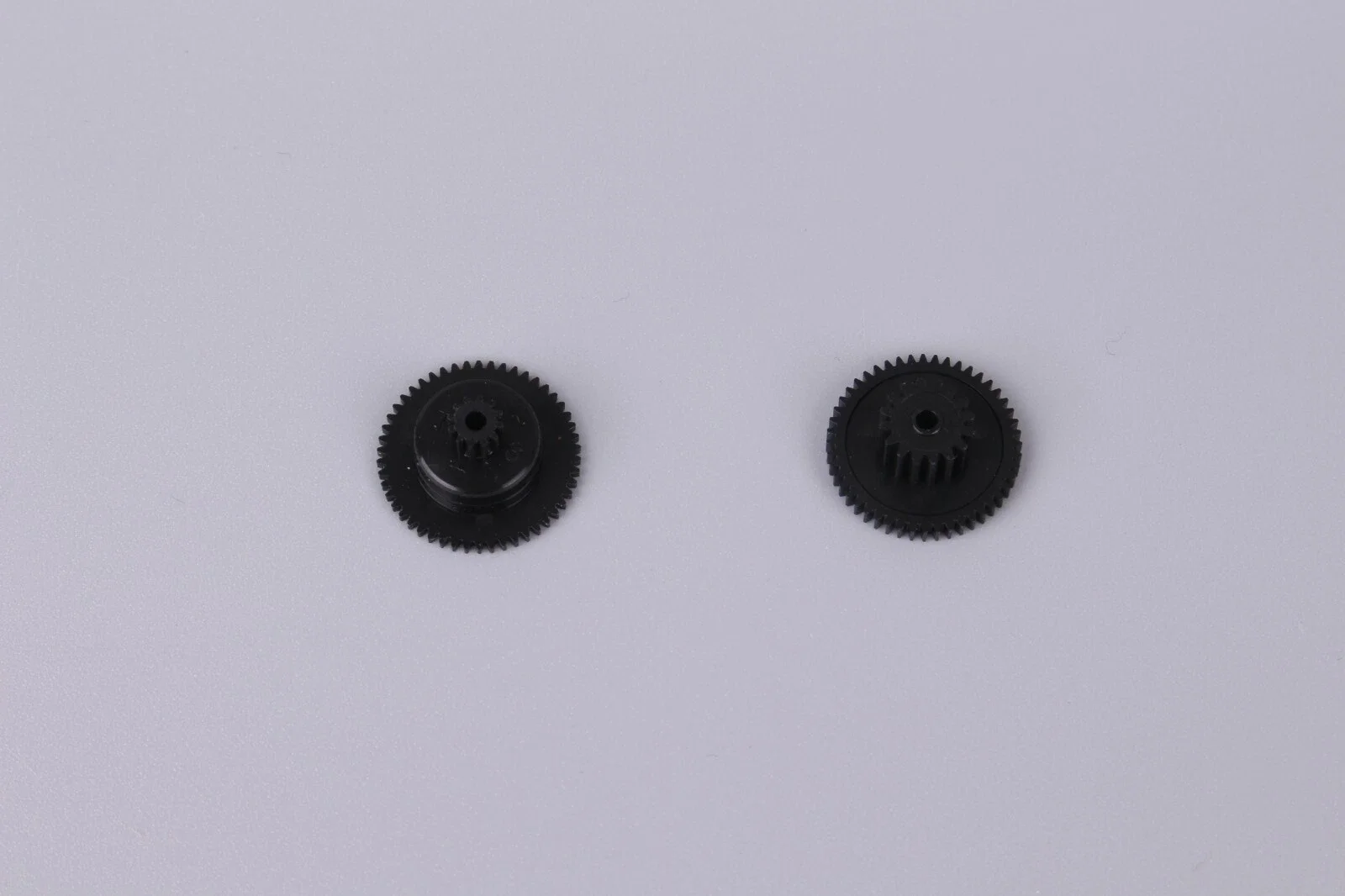

Gear Type: Plastic (includes torque gear set)
Ball Bearing: None
