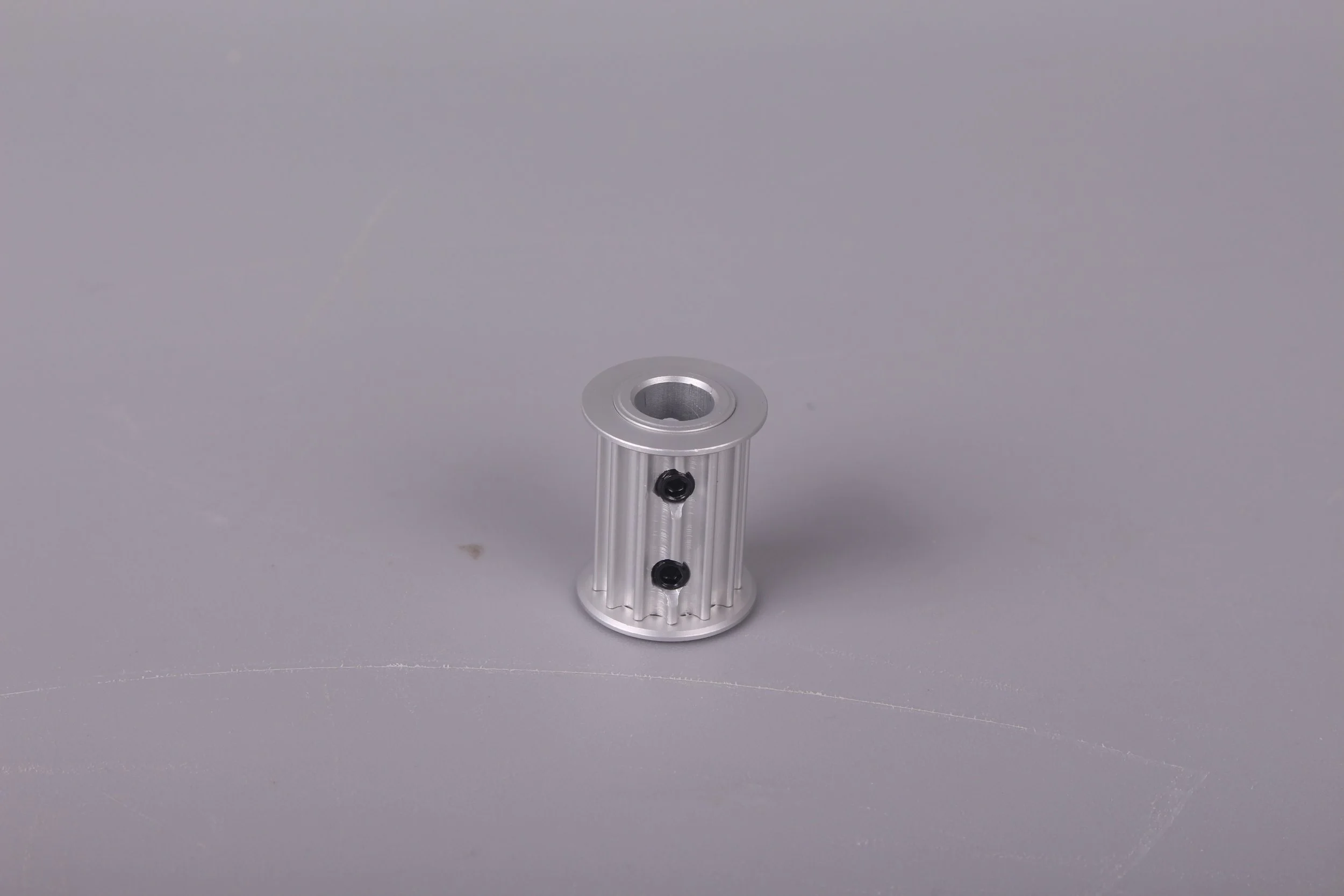

This part is a pulley that is mounted on the motor of the Panther Contra.
A group of pilots informed us of the phenomenon in which the pulley slides off the axis after a certain period of time, so we improved the existing pulley to prevent this.
If the existing pulley was fixed to the shaft with one set screw and released to rest, the problem was solved by allowing the two set screws to be fixed.
We recommend using red thread lockers for the set screws.
Specification
aluminum
3M 13 teeth
shaft diameter : 6 mm
Contents
One pulley wtih 2 set screws
This part is a pulley that is mounted on the motor of the Panther Contra.
A group of pilots informed us of the phenomenon in which the pulley slides off the axis after a certain period of time, so we improved the existing pulley to prevent this.
If the existing pulley was fixed to the shaft with one set screw and released to rest, the problem was solved by allowing the two set screws to be fixed.
We recommend using red thread lockers for the set screws.
Specification
aluminum
3M 13 teeth
shaft diameter : 6 mm
Contents
One pulley wtih 2 set screws
