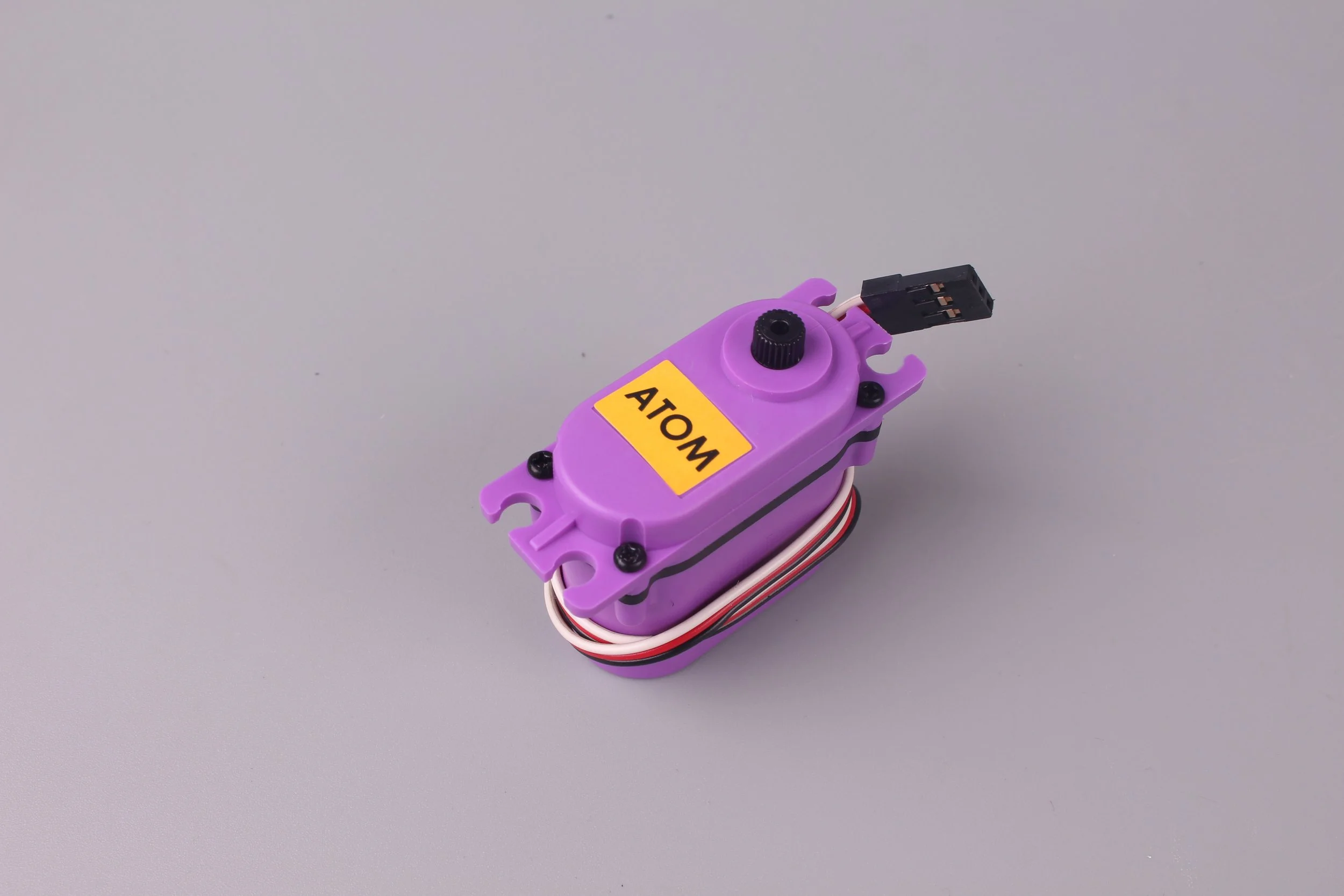

Atom Servo, High Performance

The Atom High Performance Servo is designed for pilots who demand precision, speed, and power. Built on Proton’s FRF (Fiberglass Reinforced Frame) architecture, it delivers exceptional stability under load and maintains precise gear alignment—critical for high-performance aerobatics, competition flying, and advanced RC applications.

The FRF Advantage

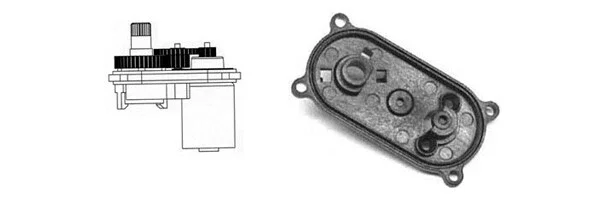

The 20% Fiberglass Reinforced Frame (FRF) minimizes structural distortion and keeps the motor, gear train, and potentiometer perfectly aligned. This results in:

• Faster response and smoother movement

• Superior precision and repeatability

• Increased durability under high torque loads

Engineered for High Voltage Power

With an HV-rated 7.4 V input, a coreless motor, and dual ball bearings, the High Performance model delivers significantly stronger torque and faster speed than the Standard version—making it ideal for demanding control surfaces.

(Note: The HP model does not include O-rings.)

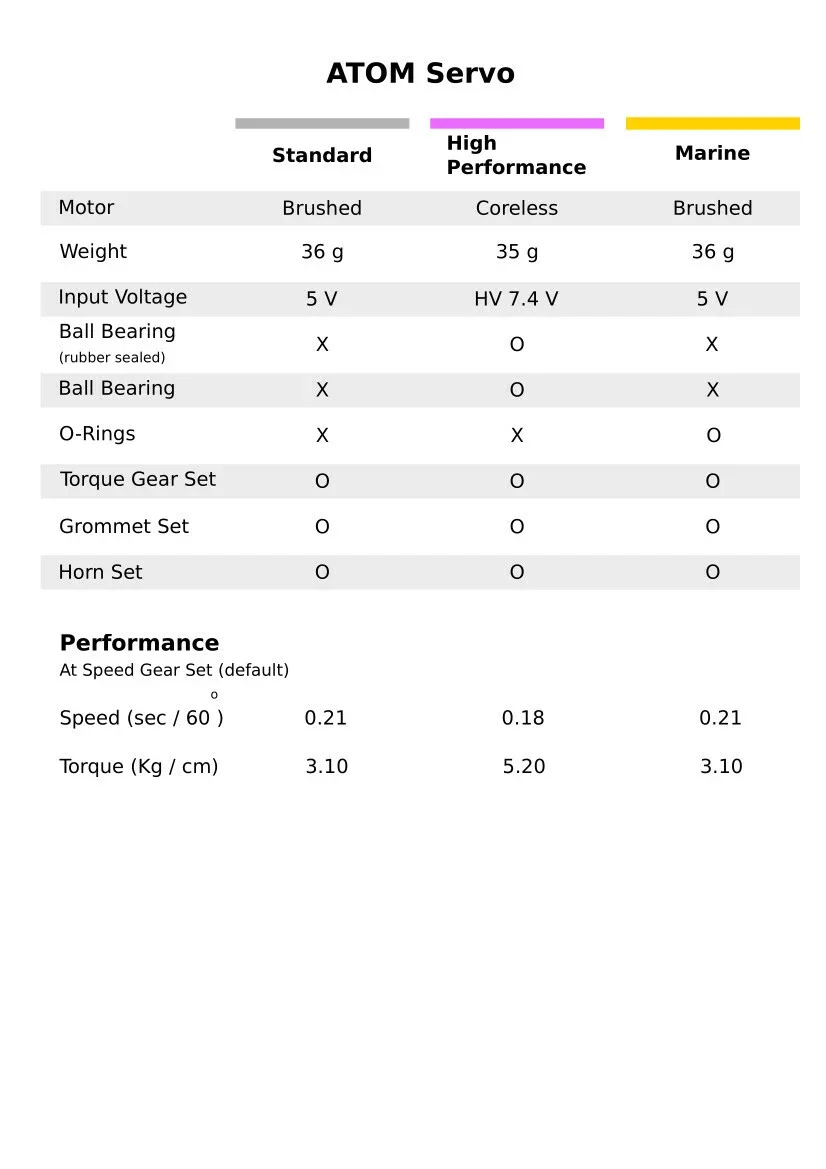

Specifications

Modulation: Digital
Motor: Coreless
Weight: 35 g
Input Voltage: HV 7.4 V
Torque: 5.20 kg-cm
Speed: 0.18 sec / 60°

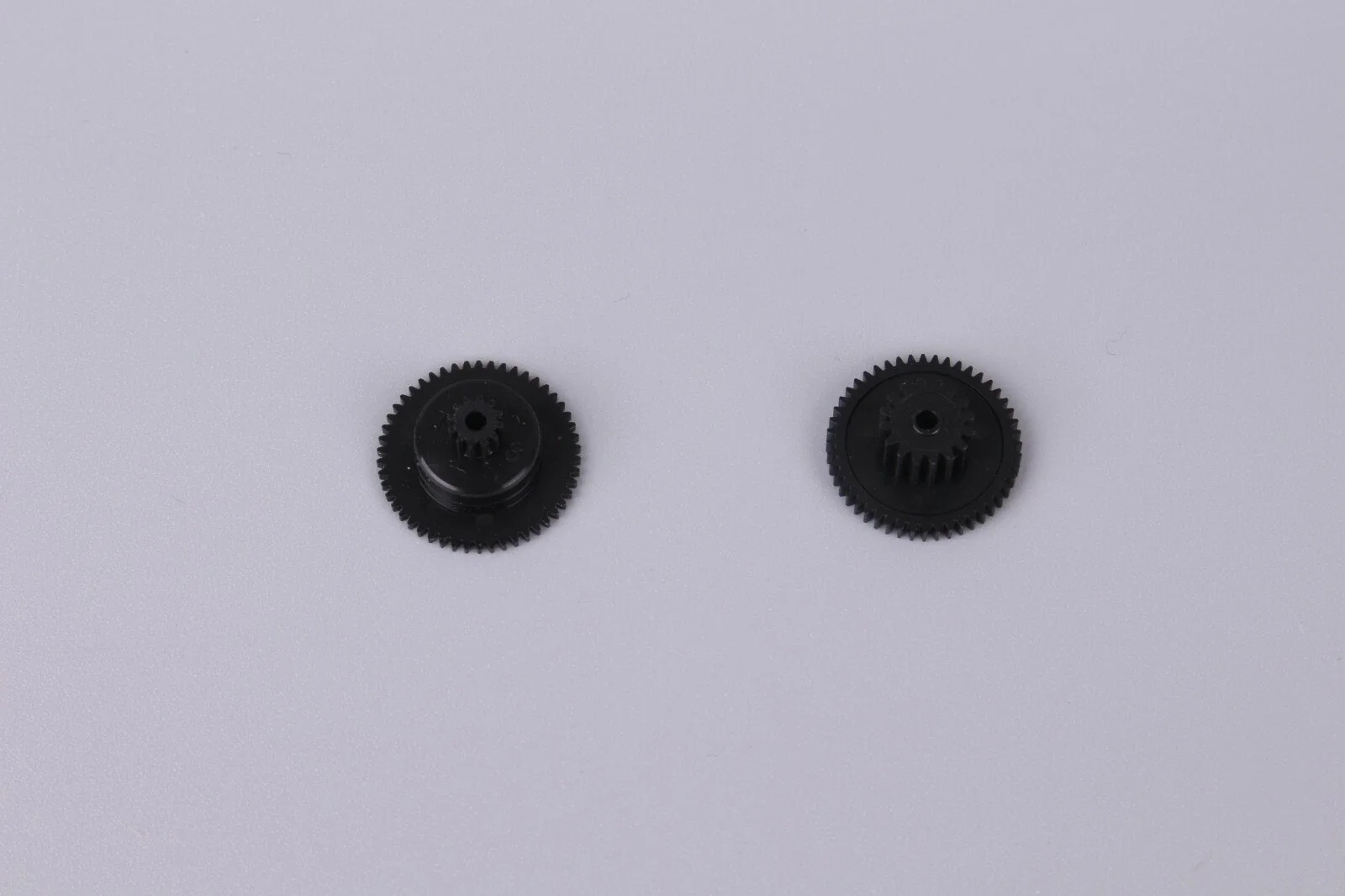

Gear Type: Plastic (Torque Gear Set included)
Ball Bearings: Dual ball bearings
O-Rings: None
Connector: JR

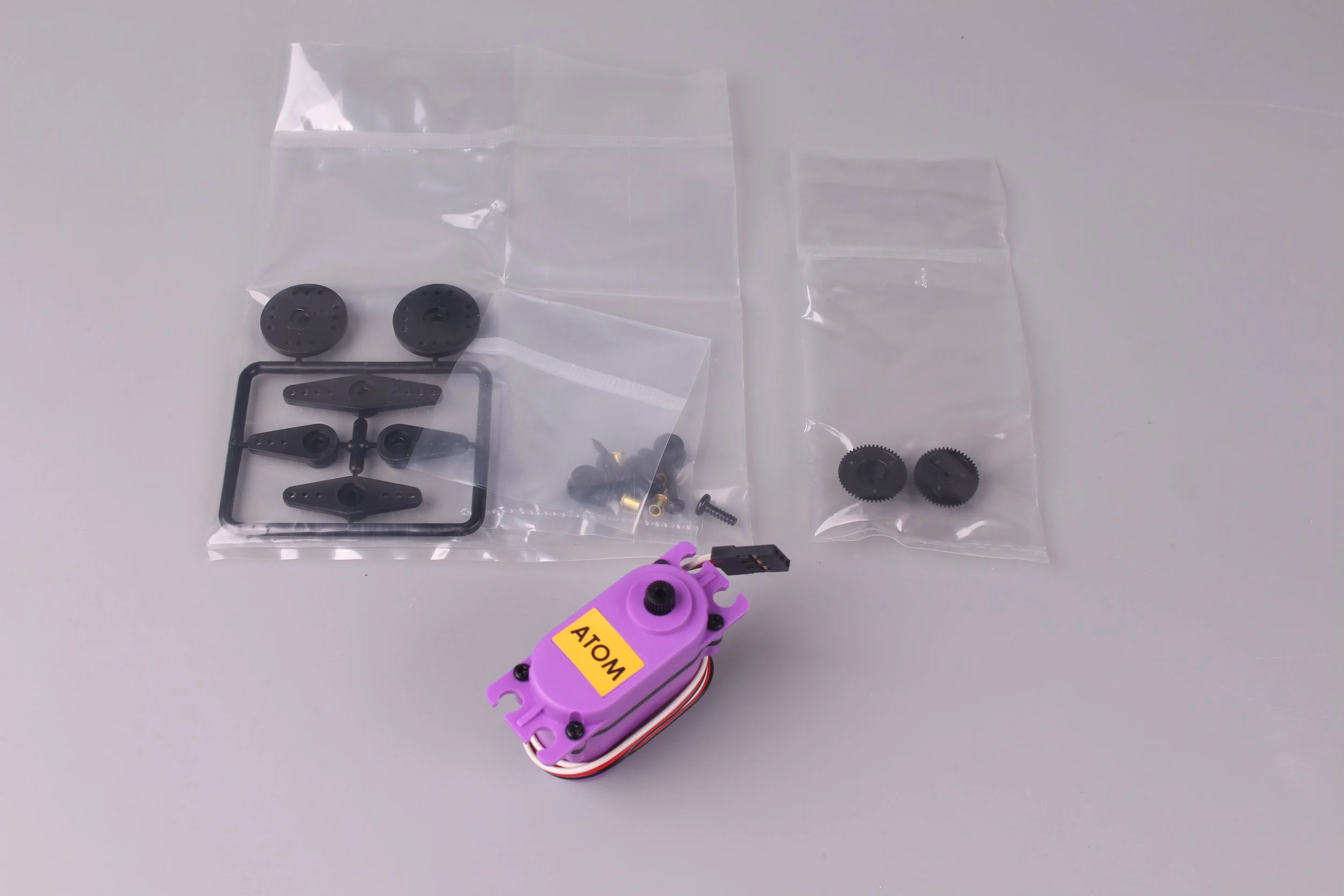

Contents (Per Set)

• Atom High Performance Servo — 1 pc

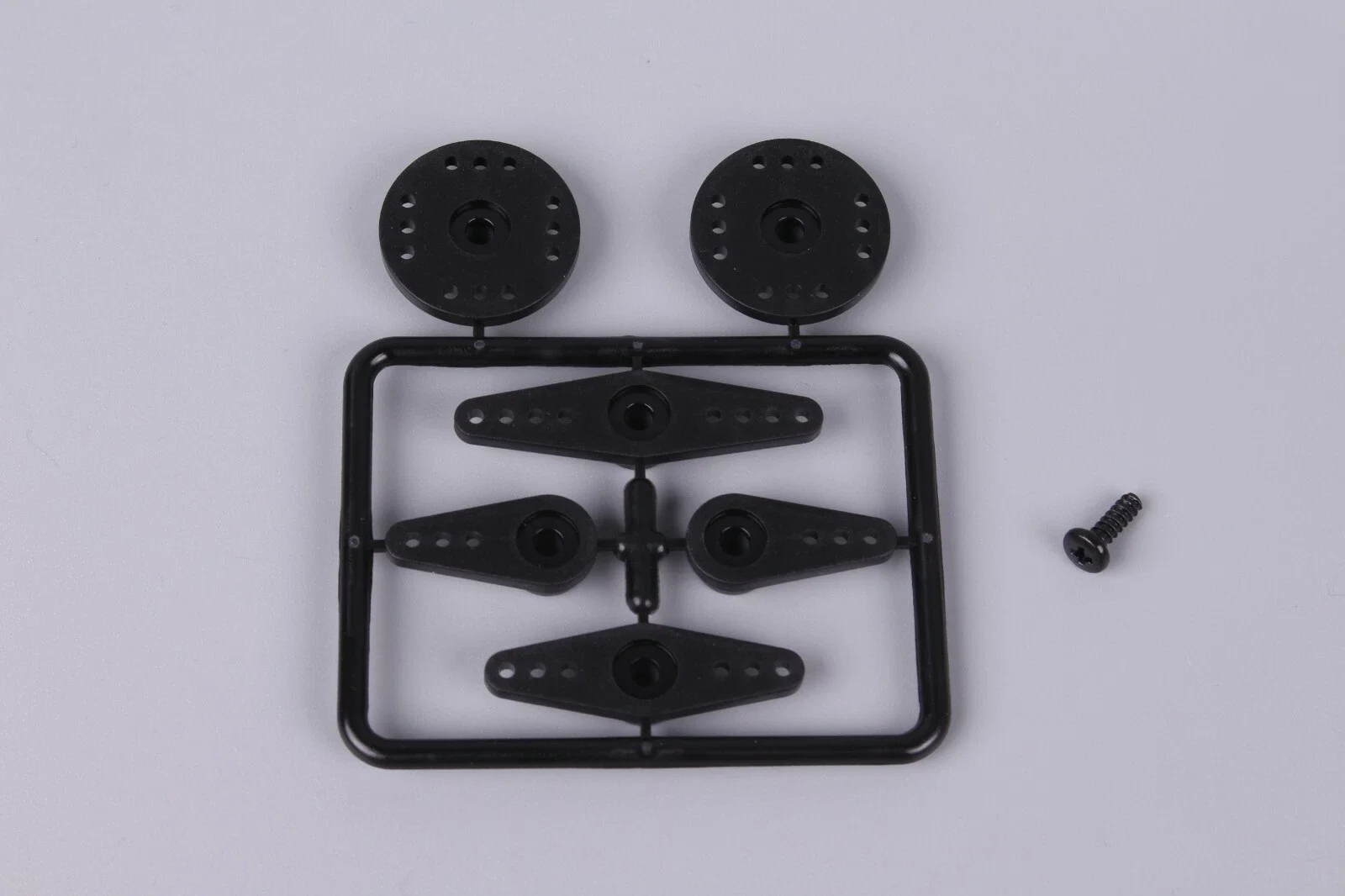

• Servo Horn Set — 1 pc

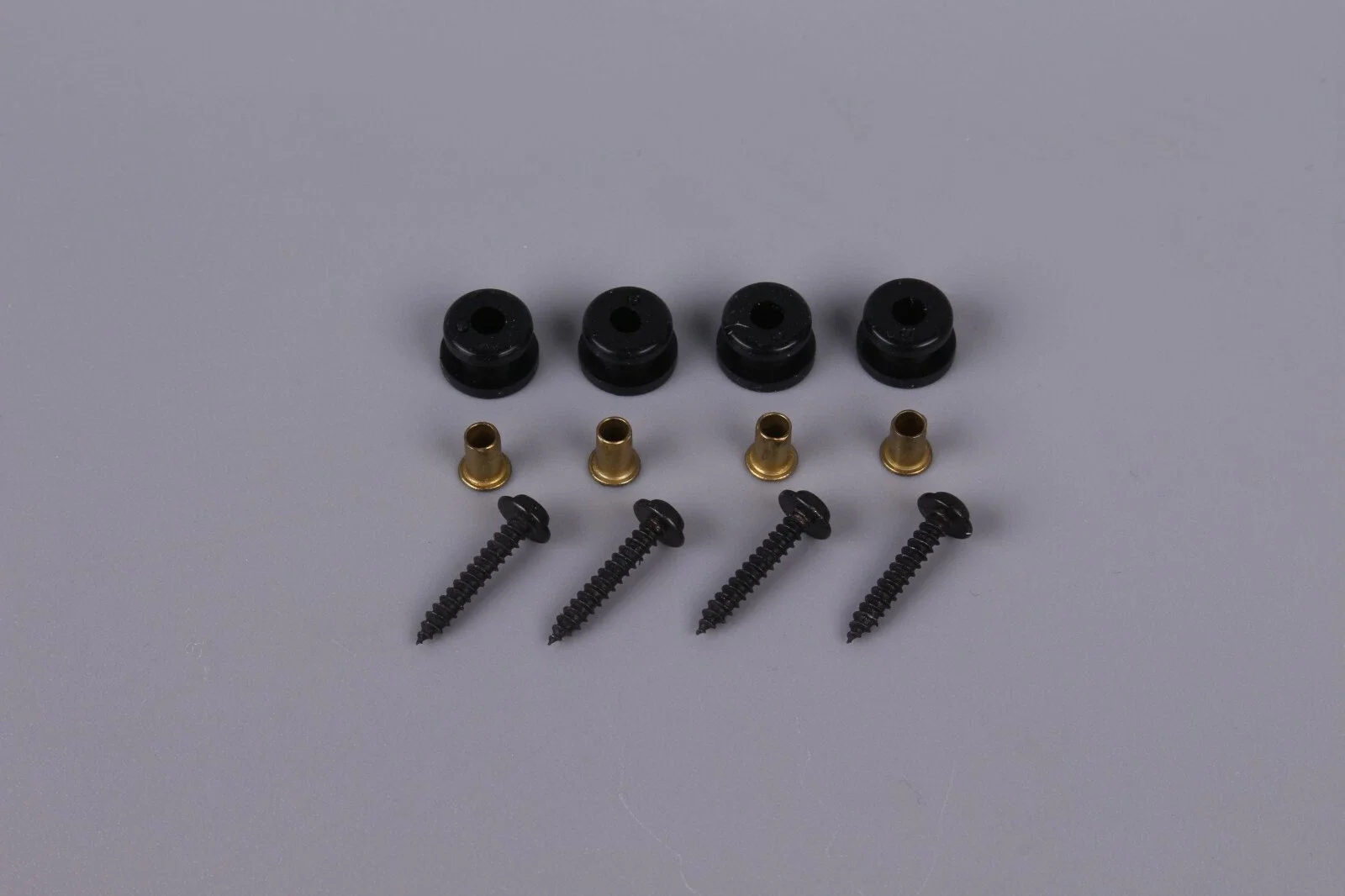

• Grommet Set — 1 pc
